12fo 24fo SM OM3 OM4 OM5 MPO Cassette MTP Modular Box For Patch Panel
Description:
- MTP/MPO Cassette Modules provide secure transition between MTP/MPO and LC or SC discrete connectors.They are used to interconnect MTP/MPO backbones with LC or SC patching.
- Modular system allows for rapid deployment of high density data centre infrastructure as well as improved troubleshooting and reconfiguration during moves, adds and changes.Cassettes can be mounted in 1U, 2U or 3U 19" multislot chassis.
- MTP/MPO Cassettes contain factory controlled and tested MTP/MPO-LC fanouts to deliver optical performance and reliability.Low loss MTP/MPO Elite and LC or SC Premium versions are offered featuring low insertion loss for demanding power budget high speed networks.
- The front cassette is equipped with a 12-port LC duplex adapter, and the rear cassette is equipped with a 2-port for MPO adapter.
- Maximum can do 24 fibers.
- Multiple polarities to choose.
- Plug-and-play modular architecture enables rapid deployment of data center fiber infrastructure and improved troubleshooting, reconfiguration, reconfiguration, and migration of fiber optic cables.
- 100% terminated in the factory and strictly tested for connection to ensure minimum insertion loss, fully meeting the demanding high-speed network.
Features:
- Made by strength steel tape.
- 19" standard size, Fit with 19'' Rack type Cabinet, easy to install.
- Hyperdensity, 1U rack can install 96fiber, save more space.
- Roomy space ensure fiber bent ratio.
- Provides a complete system solution for connectivity.
- Well cable management, cable can be distinguished easily.
- Light weight, strong strength, good anti-shocking and dustproof.
- Provide higher patch field density in fewer rack units saving valuable space.
- Assures flexibility and ease of network deployment and moves, adds, and changes.

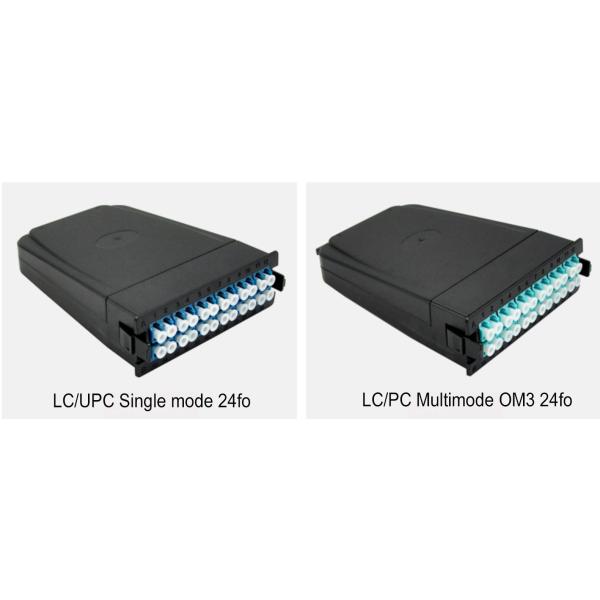

Product photo:
MTP/MPO Connector Specifications:
| Type | Single Mode | Single Mode | Multi Mode |
| (APC Polish) | (UPC Polish) | (PC Polish) |
| Fiber Count | 8,12,24 etc. | 8,12,24 etc. | 8,12,24 etc. |
| Fiber Type | G652D,G657A1 etc. | G652D,G657A1 etc. | OM1,OM2,OM3 etc. |
| Max. Insertion Loss | Elite | Standard | Elite | Standard | Elite | Standard |
| Low Loss | | Low Loss | | Low Loss | |
| ≤0.35 dB | ≤0.75dB | ≤0.35 dB | ≤0.75dB | ≤0.35 dB | ≤0.60dB |
| Return Loss | ≥60 dB | ≥60 dB | NA |
| Durability | ≥500 times | ≥500 times | ≥500 times |
| Operating Temperature | -40℃~+80℃ | -40℃~+80℃ | -40℃~+80℃ |
| Test Wavelength | 1310nm | 1310nm | 1310nm |
| Insert-pull test | 1000 times＜0.5 dB |
| Interchange | ＜0.5 dB |
| Anti-tensile force | 15kgf |
Descriptions:
| Fiber Capacity of panel | Max 96fo |
| Panel Connector | LC duplex |
| Type | Drawting |
| Dimension | 19''1U |
| Material | Cold Rolled Steel or Aluminum |
| Storage Temperature | -45~+65℃ |
| Thickness | 0.6 0.8 1.0 1.2 1.5mm |
| Accessories | Cable ties, mounting ear screws, and spiral wrap tube |
| MPO type | SM: G652D, G657A1, G657A2 MM: OM1, OM2, OM3, OM4, OM5 |
| Cable Cover | LSZH |
| Length | 0.3m, 0.5m |
